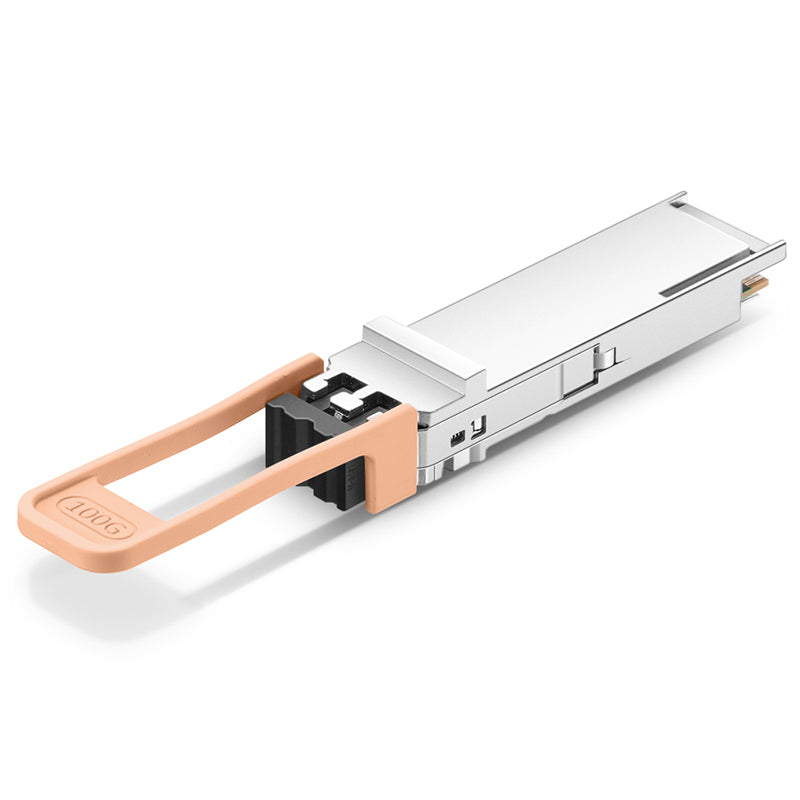

PAN-QSFP28-100GBASE-BIDI-OO | Compatible with Palo Alto 100GBASE-SR-BiDi QSFP28 Transceiver
The PAN-QSFP28-100GBASE-BIDI-OO is compatible with Palo Alto PAN-QSFP28-100GBASE-BIDI. This 100GBASE-SR-BiDi QSFP28 product supports 100G links up to 100M over multimode fiber. It uses 850nm / 910nm and a Duplex LC interface and supports digital optical monitoring.
✓ Coded In-House - programmed for the specified compatibility
✓ Tested In-House - tested for the specified compatibility
✓ Warrantied - Lifetime warranty
| Technical Specification | |
|---|---|
| Compatibility | Compatible with Palo Alto |
| OEM Part Number | PAN-QSFP28-100GBASE-BIDI |
| OEM Orderable Number | N/A |

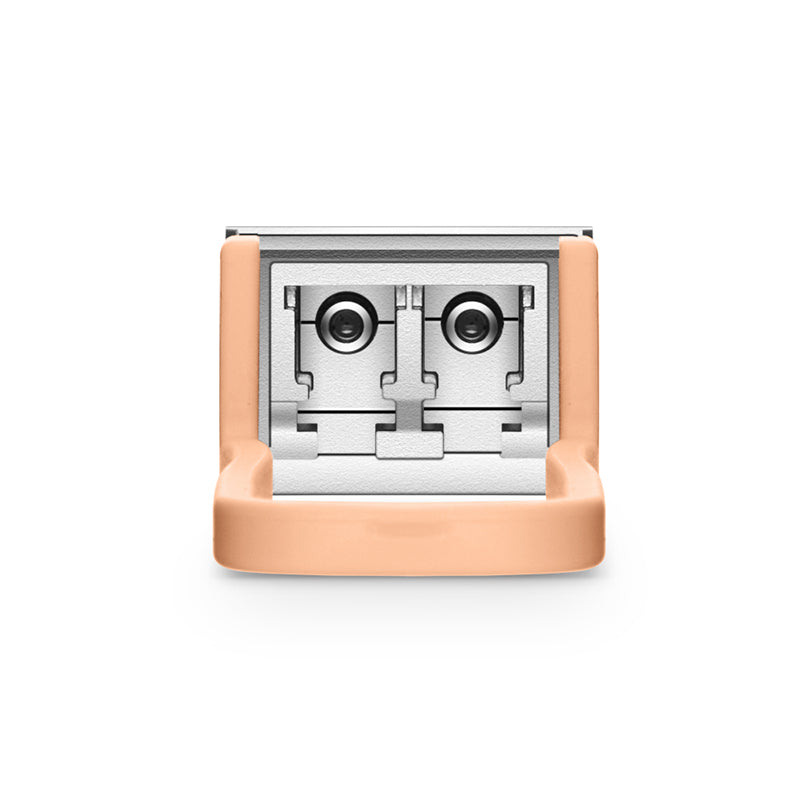

| Connector Type | Duplex LC |
| DOM | Yes |
| Form Factor | QSFP28 |
| Media Type | MMF |
| Maximum Link Length | 100M |
| Speed | 100G |
| Interface Standard | 100GBASE-SR-BiDi |
| Wavelength | 850nm / 910nm |
| Optical Specification | |
| Optical Standard | 100GBASE-SR-BiDi |
| Fiber Type | MMF |
| Nominal Wavelength | 850nm / 910nm |
| Maximum Reach | 100M |
| Transmit Power Minimum (dBm) | -6 |
| Transmit Power Maximum (dBm) | 4 |
| Receive Power Minimum (dBm) | -7.9 |
| Receive Power Maximum (dBm) | 4 |
| Transmit / Receive Wavelength Range (nm) | 855, 908 |
| Measurement Basis | 100G mode; average power; per lane |
| Physical Specification | |
| Product Shipping Dimensions (HxWxD) | 1.2 in. x 2.75 in. x 4.75 in. |
| Product Shipping Weight (lb) | 0.4 |
| Operating Temperature | 0 to 70°C (commercial) |
| Laser Class | Class 1 |
| Miscellaneous | |
| ECCN | 5A991 |
| HTS Code (US) | 8517.62.0090 |
| What's Included | 1x transceiver |
Palo Alto® is a registered trademark of its respective owner. OEM Optic is not affiliated with, endorsed by, or sponsored by Palo Alto. This is a third-party compatible product.
PAN-QSFP28-100GBASE-BIDI-OO | Compatible with Palo Alto 100GBASE-SR-BiDi QSFP28 Transceiver
Sale price$592.00
Choose options
