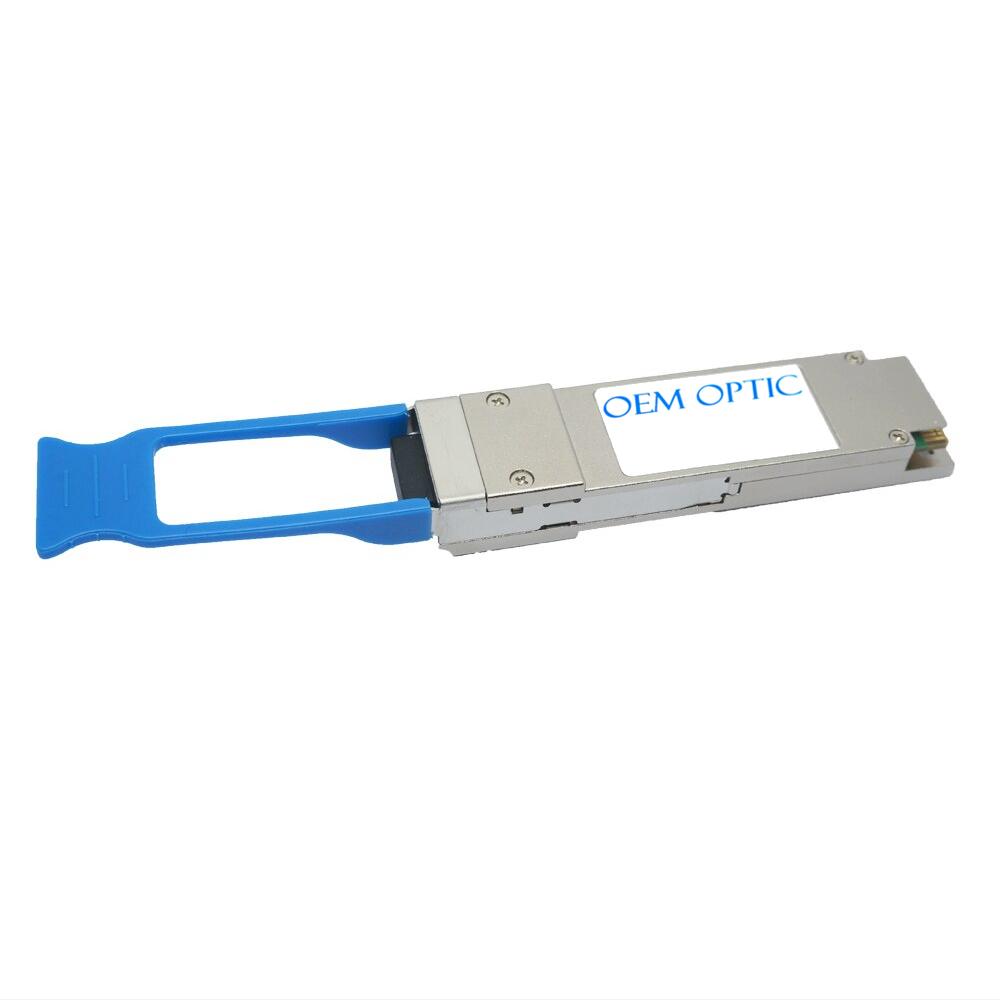

JNP-QSFP-40G-LX4-OO | Compatible with Juniper 40GBASE-LX4 QSFP+ Transceiver
The JNP-QSFP-40G-LX4-OO is compatible with Juniper JNP-QSFP-40G-LX4. This 40GBASE-LX4 QSFP+ product supports 40G links up to 400M over multimode fiber. It uses 850nm / 900nm and a Duplex LC interface and supports digital optical monitoring.
✓ Coded In-House - programmed for the specified compatibility
✓ Tested In-House - tested for the specified compatibility
✓ Warrantied - Lifetime warranty
| Technical Specification | |
|---|---|
| Compatibility | Compatible with Juniper |
| OEM Part Number | JNP-QSFP-40G-LX4 |
| OEM Orderable Number | N/A |
| Connector Type | Duplex LC |
| DOM | Yes |
| Form Factor | QSFP+ |
| Media Type | MMF |
| Maximum Link Length | 400M |
| Speed | 40G |
| Interface Standard | 40GBASE-CSR-BiDi |
| Wavelength | 850nm / 900nm |
| Optical Specification | |
| Optical Standard | 40GBASE-CSR-BiDi |
| Fiber Type | MMF |
| Nominal Wavelength | 850nm / 900nm |
| Maximum Reach | 400M |
| Transmit Power Minimum (dBm) | -7 |
| Transmit Power Maximum (dBm) | 3 |
| Receive Power Minimum (dBm) | -9 |
| Receive Power Maximum (dBm) | 3 |
| Transmit / Receive Wavelength Range (nm) | 850, 880, 910, 940 |
| Measurement Basis | Average power; per lane |
| Physical Specification | |
| Product Shipping Dimensions (HxWxD) | 1.2 in. x 2.75 in. x 4.75 in. |
| Product Shipping Weight (lb) | 0.4 |
| Operating Temperature | 0 to 70°C (commercial) |
| Laser Class | Class 1 |
| Miscellaneous | |
| ECCN | 5A991 |
| HTS Code (US) | 8517.62.0090 |
| What's Included | 1x transceiver |
Juniper® is a registered trademark of its respective owner. OEM Optic is not affiliated with, endorsed by, or sponsored by Juniper. This is a third-party compatible product.
