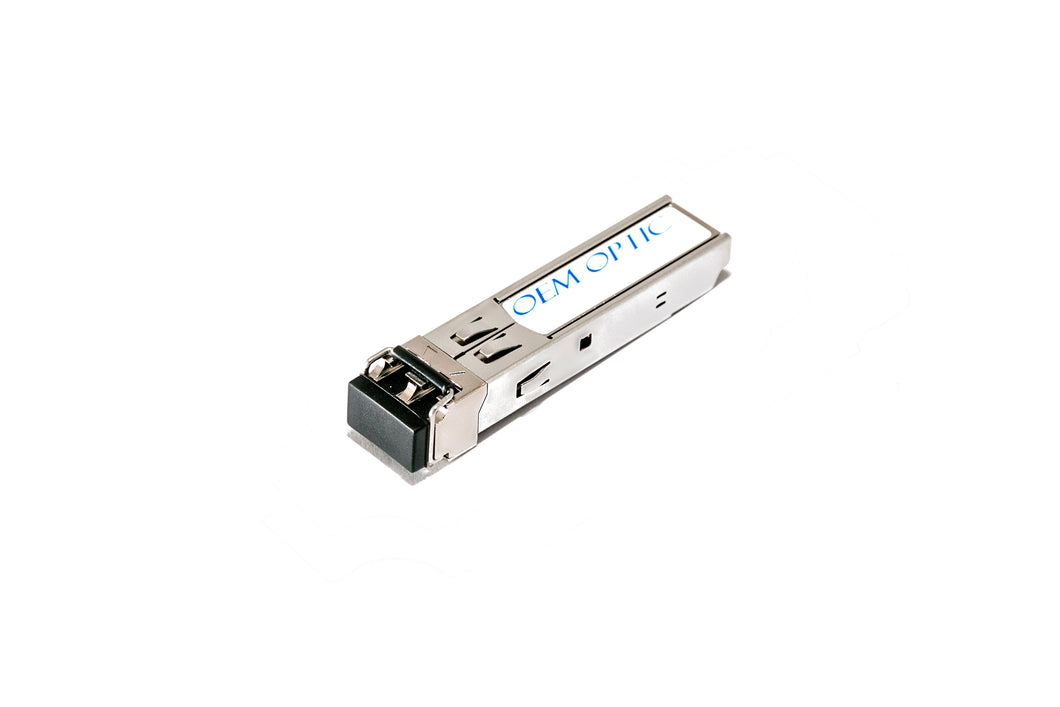

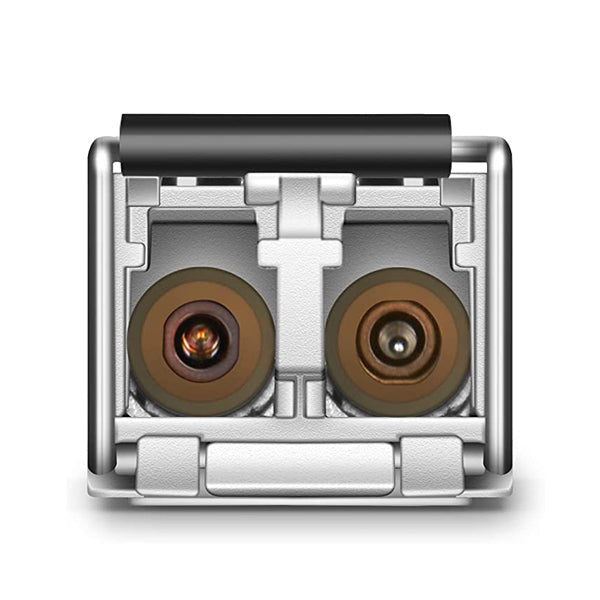

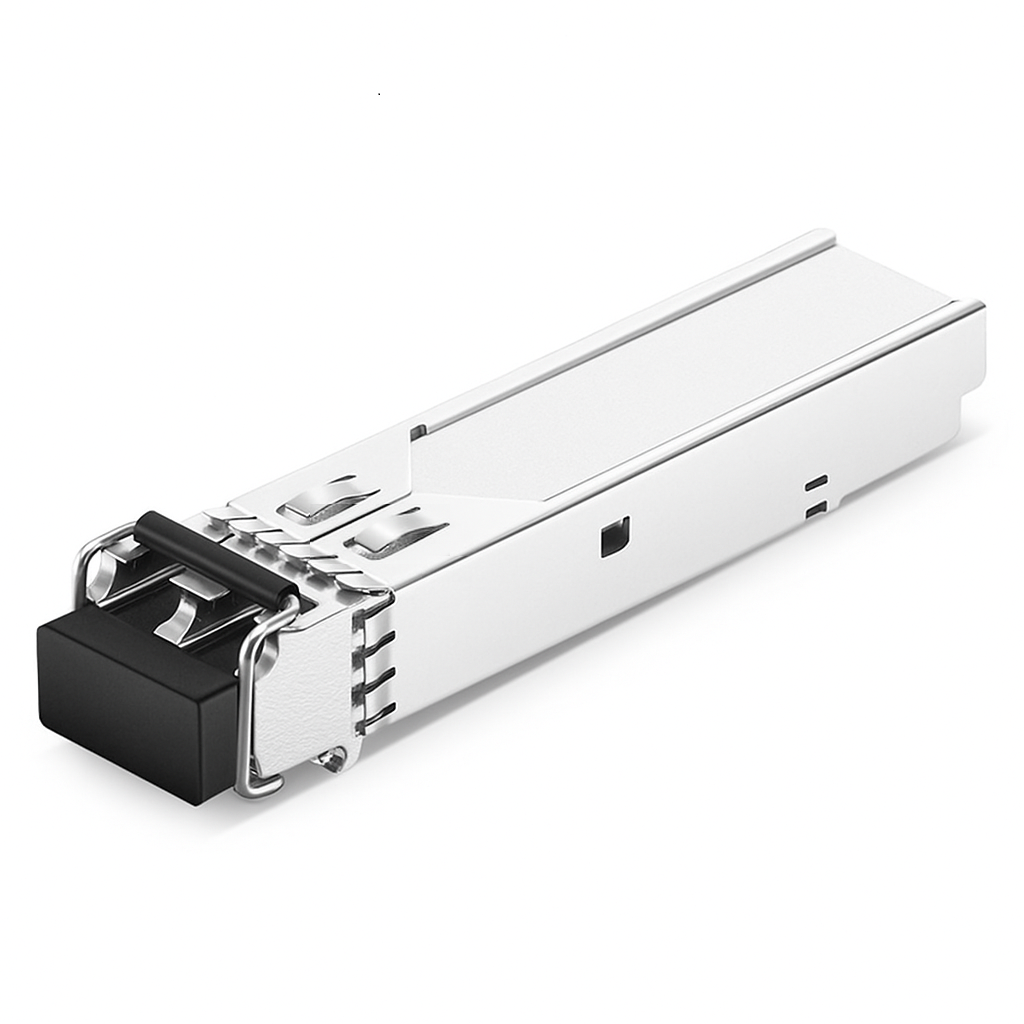

Delivering reliable 1.25Gbps connectivity over multimode fiber, this 100% OEM compatible 1000BASE-SX SFP transceiver supports up to 550 meters at 850nm. It features DOM for diagnostics, low power consumption, and full TAA, RoHS, and IEEE compliance. Ready to ship today from our California warehouse.
✓ Coded In-House - Guarantees Latest Code Revision
✓ Tested In-House - Guarantees 100% System Compatibility
✓ Warrantied - 100% Lifetime Replacement Warranty
| Technical Specification | |
|---|---|
| Compatibility | Brocade |
| Connector Type | Duplex LC |
| DOM | Yes |
| Form Factor | SFP |
| Media Type | MMF |
| Maximum Link Length | 550 Meters |
| Speed | 1.25G |
| Transceiver Type | 1000BASE-SX |
| Wavelength | 850nm |
| Optical Specification | |
| Optical Power | -9.5dBm to -3.5dBm |
| RX Sensitivity | -20dBm |
| Physical Specification | |
| Shipping Dimension | 1.2 in. x 2.75 in. x 4.75 in. |
| Shipping Weight | 0.4 lb |
| Miscellaneous | |
| Country Of Origin | USA |
| HTS-Harmonized Code (US) | 8517.70.0000 |
| ECCN | 5A991 |
| Compliance | TAA, RoHS, MSA, IEEE 802.3z |
E1MG-SX-OM-OO
