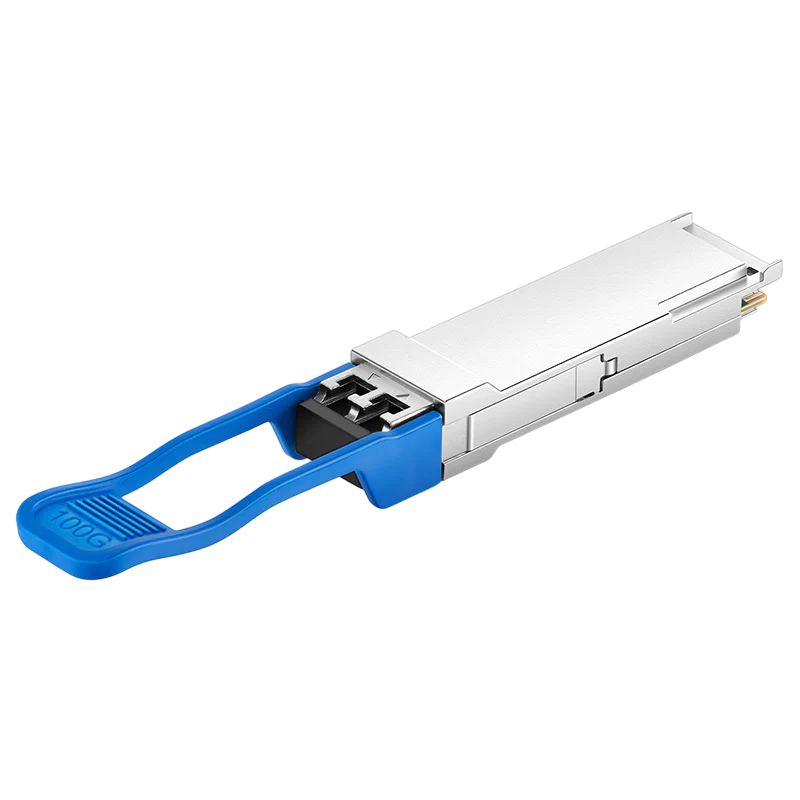

Optimize your network with the 160-9401-900-OO—an affordable, high-performance 100G transceiver designed for seamless Ciena compatibility. Offering a 10km range over single-mode fiber at 1310nm, it provides reliable connectivity with low power consumption (≤3.5W) and built-in Digital Optical Monitoring (DOM) for real-time performance tracking. In stock and ready for same-day shipping from CA, this QSFP28 module ensures a smooth, cost-effective upgrade to your infrastructure. Order now and keep your network running at peak efficiency.
✓ Coded In-House - Guarantees Latest Code Revision
✓ Tested In-House - Guarantees 100% System Compatibility
✓ Warrantied - 100% Lifetime Replacement Warranty
| Technical Specification | |
|---|---|
| Compatibility | Juniper |
| Connector Type | Duplex LC |
| DOM | Yes |
| Form Factor | QSFP28 |
| Media Type | SMF |
| Maximum Link Length | 10km |
| Speed | 100G |
| Transceiver Type | 100GBASE-LR4 |
| Wavelength | 1295nm-1309nm |
| Optical Specification | |
| Optical Power | -4.3dBm to 4.5dBm (Per Lane) |
| RX Sensitivity | -10.6dBm (Per Lane) |
| Physical Specification | |
| Shipping Dimension | 1.2 in. x 2.75 in. x 4.75 in. |
| Shipping Weight | 0.4 lb |
| Miscellaneous | |
| Country Of Origin | USA |
| HTS-Harmonized Code (US) | 8517.70.0000 |
| ECCN | 5A991 |
| Compliance | TAA, RoHS, MSA, IEEE 802.3z |
160-9401-900-OO
Sale price$395.00
Choose options
160-9401-900-OO
Sale price$395.00
